Solar Controller/Inverter

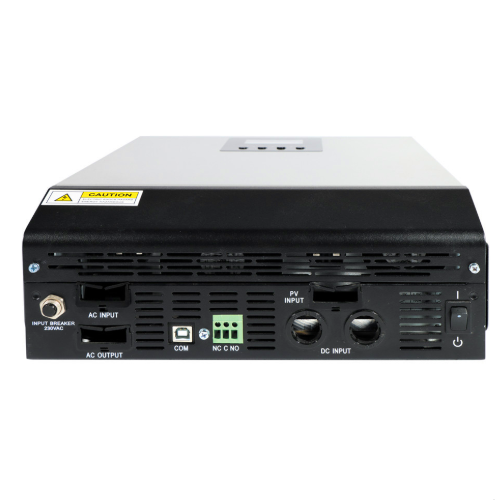

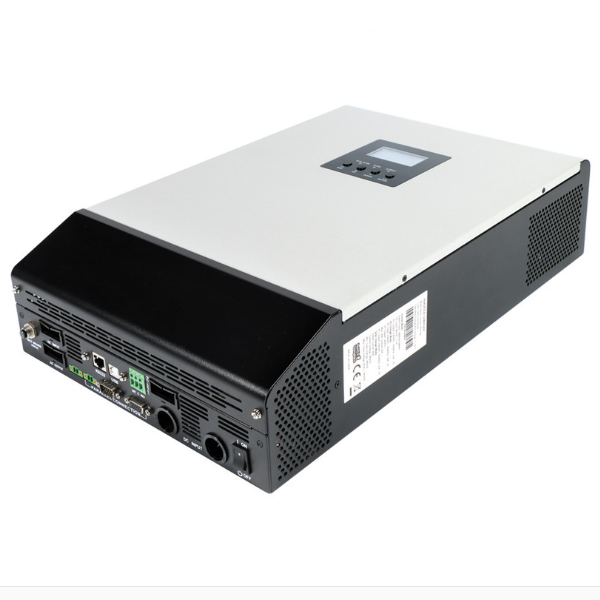

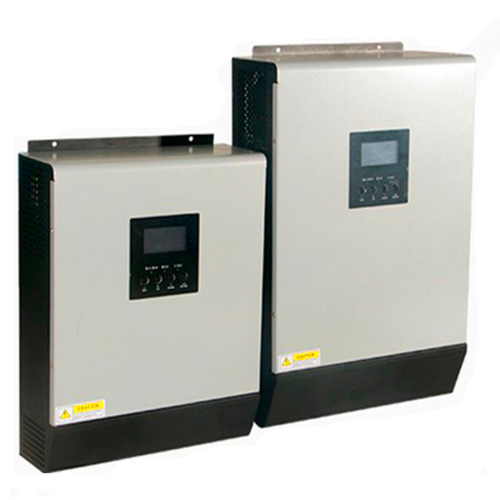

Name:1kW-5kW High Frequency Off-grid Inverter( MPPT)

The pure sine wave power frequency inverter which can convert 12V,24V or 48V DC to 220VAC or 230VAC 50Hz/60Hz based on full digital and intelligent design. The inverter can be applied in many fields especially for solar photovoltaic power system.
  • Features
  • Detailed
  • Service

Features:

·Complete isolation-type inverter technology, noiseless output
·Adoption of advanced SPWM technology, pure sine wave output
·Dynamic current loop control technology to ensure inverter reliable operation.
·Wide DC input voltage range
·Low output harmonic distortion(THD≤3%)
·LED indicators display input voltage range, load power range, normal output & failure state
·Wide working temperature range (industrial level)
·Continuous operation at full power


Protections:


·Output Short Circuit protection
·Overload protection
·Input reverse polarity protection
·Input low voltage protection
·Input over voltage protection
·Inverter abnormal protection
·Overheating protection
