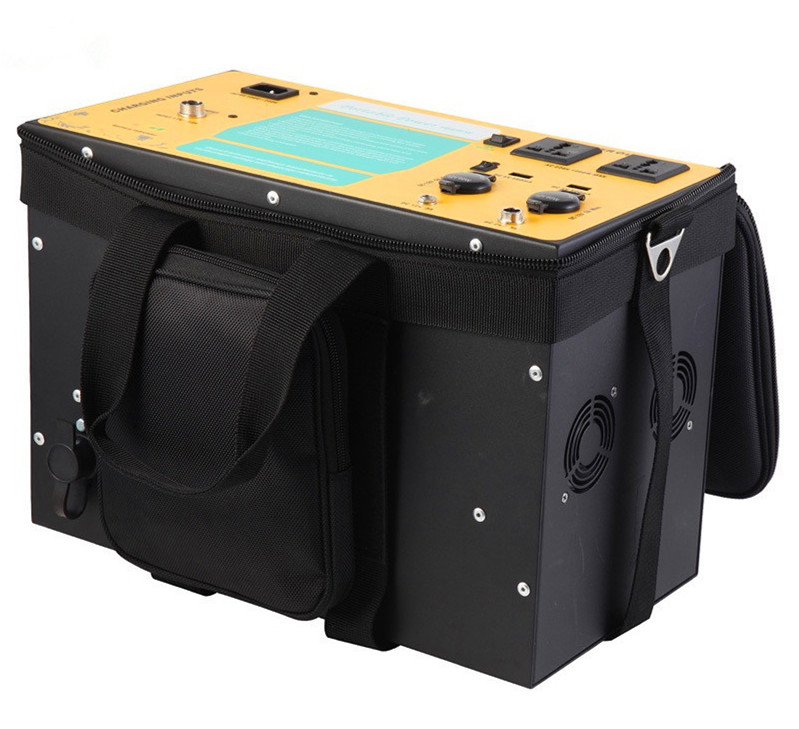

Features
◆ Save energy, eco-friendly
◆ Integrated design with controller, inverter and battery box
◆ Easy installation, simple and useful
◆ Reliable power supply, safety performance
◆ Intelligent battery management
◆ Multiple protections: DC & AC over voltage, over current, over temperature, short circuit etc
◆ LCD smart display
◆ With isolation transformer, can support electric fan, washing machine, ice-box
|
Model |
FSS-500BT |
FSS-700BT |
FSS-1000BT |
|
Solar controller |
|||
|
Max PV input power |
560W |
560W |
800W |
|
PV input volatge range |
30 - 50VDC |
||
|
Max. charge current |
20A |
30A |
|
|
Inverter |
|||
|
Rated Power |
500VA /350W |
700VA/500W |
1000VA/700W |
|
Output voltage |
110/220/230/240Vac±10% |
||
|
Output frequency |
50/60HZ±1HZ |
||
|
Output wave type |
pure sine wave |
||
|
THDI |
<5%（linear load） |
||
|
Output voltage regulation |
<5%（Load 0～100%） |
||
|
Input current crest factor |
3 |
||
|
Over load capacity |
100-125% 10min；125-150% 1min；150-200% 10s |
||
|
Battery |
|||
|
Battry type |
Lead-acid battery |
||
|
Battery capacity |
150AH |
||
|
Battery rated voltage |
24VDC |
||
|
Battery floating charge voltage |
27VDC |
||
|
System |
|||
|
Display |
LCD+LED |
||
|
Display content |
PV indicator, battery capacity, AC voltage, load percentage, |
||
|
Inverter protection |
AC over volatge,AC short circuit, DC over volatge, DC under voltage, over temperature, etc |
||
|
Cooling method |
Air cooling |
||
|
Communication interface |
RS232 |
||
|
Operating temperature range |
-20℃ ~ +55℃ |
||
|
Relative humidity in operation |
0 ~ 95% (non-condensing) |
||
|
Storage temperature range |
-20℃ ~ +70℃ |
||
|
Max. operating altitude |
5000m（>3000m derating) |
||
|
Noice emission |
<55dB (distance in 1m) |
||
|
Efficiency |
>85% |
||
|
Ingress protection rating |
IP20 |
||
|
Dimention(W*H*D)mm |
450×470×520 |
||
|
Weight(w/o battery) |
24kg |
24.5kg |
25kg |
