Name：MPPT Solar Charge Controller
MPPT (Maximum Power Point Tracking)Solar Charge Controller offer an efficient, safe, multi-stage recharging process
that prolongs battery life and assures peak performance from a solar array. Each Charge Controller allows
customized battery recharging.
that prolongs battery life and assures peak performance from a solar array. Each Charge Controller allows
customized battery recharging.
- Features
- Detailed
- Service

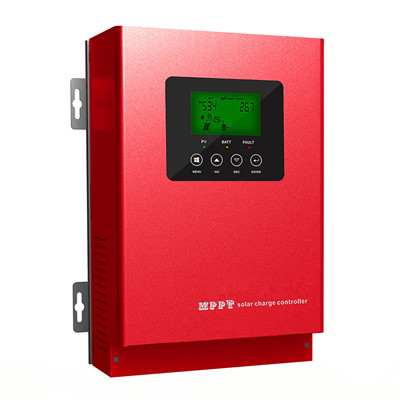

LCD/LED Display Information
1. MENU: Enter or exit setting mode
2. UP: Increase the setting data
3. DOWN: Decrease the setting data
4. ENTER: Confirm the selection in setting mode
|
LED indicator |
System status |
|||
|
5. PV |
Green |
On |
PV voltage normal |
|
|
Flashing every 1s |
PV fault is recovering |
|||
|
Flashing every 2s |
PV fault can’t recover |
|||
|
Off |
PV is off |
|||
|
6. BATT |
Yellow |
On |
Battery voltage normal |
|
|
Flashing every 1s |
Battery fault is recovering |
|||
|
Flashing every 2s |
Battery fault can’t recover |
|||
|
Off |
Battery is off |
|||
|
7. FAULT |
Red |
Flashing |
Fault |
|
|
Off |
Normal |
|||
8. LCD display

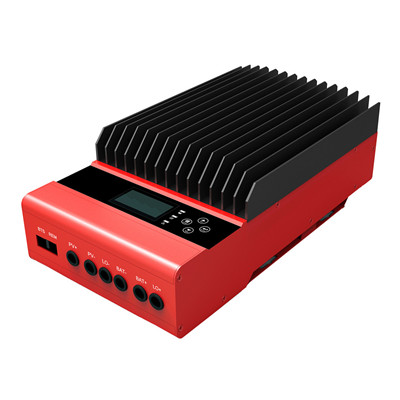

Figure 1 Back Panel Information
9. BTS: Remote external temperature terminal
10. REM: Communication network terminal
11.LO-: The load negative terminal
12.LO+: The load positive terminal
13.BA-: The battery negative terminal
14. BA+: The battery positive terminal
15. PV-: PV array negative terminal
10. REM: Communication network terminal
11.LO-: The load negative terminal
12.LO+: The load positive terminal
13.BA-: The battery negative terminal
14. BA+: The battery positive terminal
15. PV-: PV array negative terminal

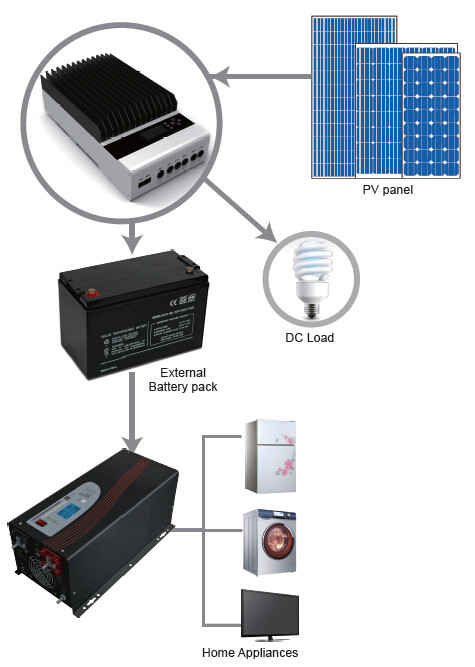

Solar System Connection
-
45A/60A MPPT Solar charge controller
-
12V/24V/36V/48V auto work
-
MPPT efficiency>99%,Peak conversion efficiency >98%
-
DSP processors architecture ensure high speed and performance
-
Multi-stage charging mode
-
Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit
| Model | FSS-4515A | FSS-6015A | ||||
|---|---|---|---|---|---|---|
| Default Battery System Voltage | 12VDC/24VDC/36VDC/48VDC (Auto Detection) | |||||
| CONTROLLER INPUT | PV Open Circuit Voltage | 100VDC@12V/ 145VDC @24V/ 145VDC @36V/ 145VDC @48V | ||||
| PV Array MPPT Voltage Range | 16VDC~100VDC / 32VDC~130VDC / 48VDC~130VDC / 64VDC~130VDC | |||||
| Max PV Input Power (12V) | 600W | 800W | ||||
| Max PV Input Power (24V) | 1200W | 1600W | ||||
| Max PV Input Power (36V) | 1800W | 2400W | ||||
| Max PV Input Power (48V) | 2400W | 3200W | ||||
| BATTERY | Peak Conversion efficiency | 98% (MPPT Efficiency 99%) | ||||
| Max Charging Current | 45 amps continuous | 60 amps continuous | ||||
| Absorption Voltage | 12.5VDC/25.0VDC/37.5VDC/50.0VDC | |||||
| Refloat Voltage | 13.7VDC/27.4 VDC/41.4VDC/54.8VDC | |||||
| Float Voltage | 14.3VDC/28.6 VDC/42.9VDC/57.4VDC | |||||
| Low Voltage Protection Point | 10VDC/20.0 VDC/30.0VDC/40.0VDC | |||||
| DC OUTPUT | Output Voltage | 10.0VDC~14.5VDC / 20VDC~29.0VDC / 30.0VDC~43.5VDC / 40.0VDC~58.0VDC | ||||
| Max Load Current | 45 amps continuous | 60 amps continuous | ||||
| Warning for low voltage | 10.25VDC/20.5 VDC/30.75VDC/41.0VDC | |||||
| Cut off for low voltage | 10.0VDC/20.0 VDC/30.0VDC/40.0VDC | |||||
| Low voltage recovery | 11.0VDC/22.0 VDC/33.0VDC/44.0VDC | |||||
| GENERAL SPECIFICATION | Radiating mode | Air cooling | ||||
| DISPLAY & PROTECTION |
LED indication | Systematic operation, LV indication, LV protection, over charge protection, loads protection, short circuit protection | ||||
| LCD display | Charge voltage, charge current, voltage of storage battery, capacity of storage battery, output current | |||||
| Alarm Protections | PV array short circuit, PV reverse polarity | |||||
| Battery reverse polarity, Over charging protection | ||||||
| Output short circuit protection | ||||||
| Low voltage protection for storage battery | ||||||
| MECHANICAL SPECIFICATIONS | Mounting | Wall mount | ||||
| W*H* D(mm)/Net Weight(kg) | 205*371.7*124.3mm/6.45kg | |||||
| OTHER | Environmental Rating | Indoor | ||||
| Operation Temperature Range | -25~+55°C | |||||
| Ambient humidity | 0~90% relative humidity(non-condensing) | |||||
| Altitude | ≤ 3000m | |||||
